ZBSW-H04（花中花）
發布時間：2013-10-25

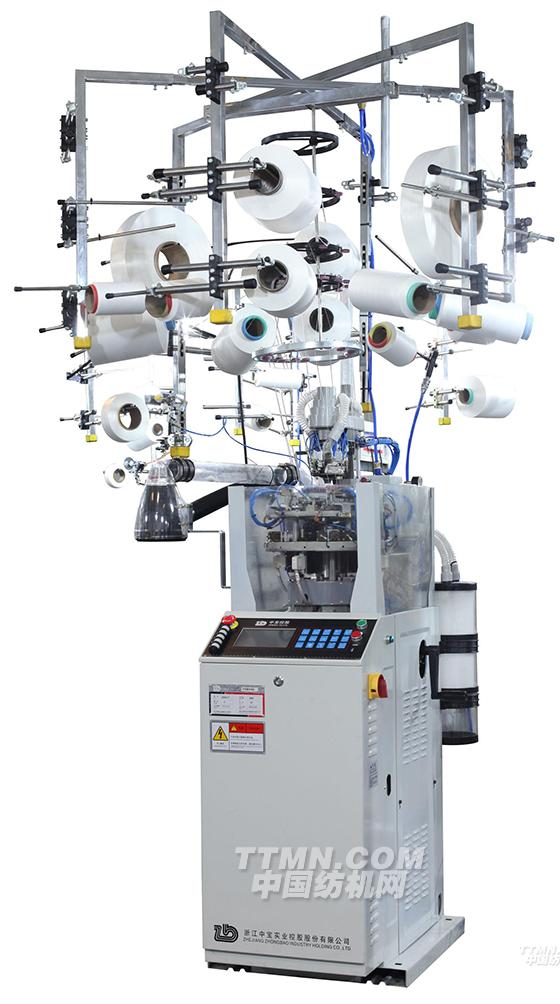

ZBSW-H04（花中花）Computerized Pantyhose jacquard knitting machine
編制類別：
本設備可編織平紋，網眼，提花組織，一橫列可編織3色圖案組織，花中花，可選針局部打松，廣泛適用于尼龍絲、包芯絲、天鵝絨、錦綸、牛奶絲等原料的絲襪織品，織品主要有各型提花襪、高檔含花中花組織的提花襪、對對襪、中統襪、長統襪、連褲襪、九分褲、連身襪等。
Weave:
The Computerized Pantyhose jacquard knitting machine can plain weave,mesh and jacquard weave three-color patterns can be knitted in a low,Timyarn,jacquard, pattern jacquardand other patterns. The machine can widely usenylon yarn, coreyarn, velvet, nylon, milksilkand other raw materials to producestockingfabrics, includingjacquard socks,high-quality pattern jacquard socks, pairs socks, longstockings, pantyhose, and nine point’s stockings products.
主要功能：
1.四路進紗，每組喂紗裝置配備8把梭子，可滿足各種襪品的生產需要；
2.主口梭子采用了分體式設計，大大降低客戶的使用成本且便于維修；
3.線圈組織的針弧大小、襪品的尺寸，均由高精度足功率的步進馬達控制針筒的上下來實現，也可通過控制4個成圈三角的步進馬達來控制成圈三角的高低來實現；
4.采用了高靈敏的裸氨輸送器，通過調節輸送器控制裸氨的松緊，便于編織各型美腿襪；
5.采用了環形紗架，配備了光電感應斷紗器，從而大大提高了報警及時性，減少了紗線浪費；
6.密度調節，通過針筒、密度三角、生克三角三個部分，對織物密度進行調節。
7.可編織不同浮線橡筋和各色提花圖案，并可在同一橫列提2至3色的提花圖案，有花中花的功能；
8.采用全方位安全保護措施（氣源處理系統、油量報警、過載停車等），最大限度防止機器損壞、保障人員安全；
9.在軸承、電磁閥、同步帶、織針、花鍵類均選用了進口配件同時，采用了科學合理的裝配工藝，從而使得機器穩定性好、噪音低。
Main features:
1.4-way feeders, each yarn feeder device is equipped with 8 shuttles, which can meet requirements of all variety of socks;
2.The main shuttle adopts independent design system, which greatly reduce customer's usage cost and easily for maintenance;
3.Stitch density and socks size are finished by cylinder being up and down which controlled from high-precision stepper motor .
4. It adopts one highly sensitive bare spandex carrier, which can adjust tightness of the bare spandex and easily to knit all types of socks;
5.Circular creel with a photoelectric sensor which can greatly improving the alarm on time and reduce yarn waste;
6.Stitch density control,the stitch density addjust to cylinder,stitch cam and sinker cam;
7.Standard model machine adopts DEIMO computer design system , which have good quality in performance and functions;
8.It can weave different floating line elastics and jacquard patterns. And one course can knit 2-3 colors motif with pattern jacquard function.
9.Equipped with enough protection measures (air compressor system, auto lubrication alarm, overload stop, etc.) to prevent damage to the machine and keep safety of personnel;
10.Taking advanced and Imported parts for bearings, solenoid valves, synchronous belt, needles, splines and so on. And it has scientific assembly process to keep machine working stable with lownoise.
性能參數：
|
機器型號 |
針筒直徑 |
針數范圍 |
最高轉速 |
適用產品 |
|
ZBSW-H04 |
4英寸 |
240N-400N |
平紋最高轉速：800RPM 提花最高轉速：500RPM |
高檔提花襪（可含花中花組織）、連褲襪等 |
Performance Parameter：
|
Machine Model |
Cylinder Diameter |
Number of Needles |
Maximum Speed |
Available Production |
|
ZBSW-H04 |
4” |
240N-400N |
Plain weave Max.：800RPM Jacquard Max.：500RPM |
High-quality Jacquard socks( including pattern jacquard), Pantyhose, long stockings |
標準配置：
1.四路喂紗裝置均配備8把梭子；
2.配備線架的同時，配備了1個裸氨輸送器和12個光電感應斷紗器；
3.帶包邊的圓盤剪刀，圓盤剪刀在任意步段可停止轉動；
4.配備由3個步進馬達控制生克弧大小的多功能生克罩；
5.配備了4個步進馬達控制成圈三角高低，并配備了4個氣閥控制成圈三角的進出；
6.配備了可升降的扎口盤，其中4把小剪刀中有2把小剪刀具有氣動控制上下的功能；
7.4個16把刀片的壓電陶瓷選針器。
Standardconfiguration:
1.4-wayyarnfeederis all equipped with8shuttles;
2.It has one creel, one bare spandex carrier and 12photoelectricsensorsoffyarn;
3. The clippers withdiscpackage edge, which can stop rotation at anystep;
4. Sinker cover , which controlled by one stepping motor though adjust sinker size;
5. Equipped with 4 stepping motor control circle-triangle height, and 4pneumatic valve control cycle-triangle access process.;
6.The waist belt can rise or fall with 4 scissors , including 2 scissors up and down controlled bypneumatic;
7.4 piezoelectric ceramic-type 16-section needle selector..
