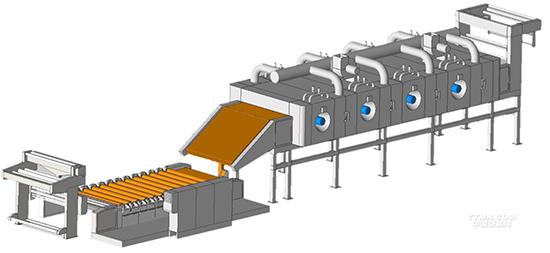

NK-6開放式圓網印花機(高進布)
本機技術特征：
1.獨立伺服/計算機控制
2.穩定性能高：印花單元精密氣動控穩
3.抗腐蝕性能高：80%采用不銹鋼及抗腐蝕材料
4.機械系統集成化：超低的故障設計理念
5.節能環保的新理念：節電，節水（循環用水）
6.刮刀/磁棒聯合機：適合不同克重織物印花
7.對花穩定、靈活：采用進口不銹鋼滾珠絲桿。印花臺移動無機械間隙
8.高進布烘房,為您節約工作空間。
9.獨特的印花系統，上膠，水洗，印花壓輥，可以擴展更多的附加系統
10.糾偏采用雙重糾偏裝置/不銹鋼滾輪。紅外線探頭,確保導帶運行平穩
有效印花幅寬：1800-4000（mm)
印花套色數：4-24
圓網花回：640-726-819-914-1018-1200
標準車速：4-100m/min
印花方式：磁棒/刮刀magnetic/ Scraper
對花精度：±0.05mm
傳動方式：獨立伺服傳動

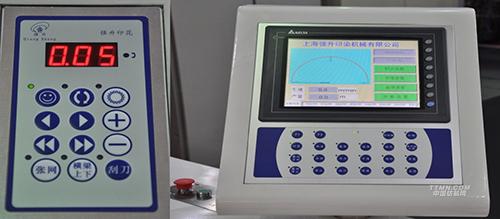

數字主屏：光纖伺服總線控制（中英文）
車別：左手車/右手車(沿布運行方向由傳動側判斷)
對花調節范圍：縱向360°/橫向±20/斜向±10
烘房形式：普通烘房/松式烘房/高進布
熱源：導熱油160°/天然氣180°/蒸汽130°
空氣壓力：0.6-0.8MPa
水壓力：0.3MPa
電力參數：380VAC（±5%）50HZ 3PHASES
接地方式：TN-S
照明電源：220V
防護等級：IP54
總功率≈105-165 KW

NK-6 Open Rotary Screen Printing Machine(Entry in high-width)
The machine technical features:
1.Independent servo/ computer control
2.High stability：printing unit precision pneumatic control stability
3.High Corrosion resistance: 80% of stainless steel and corrosion-resistant materials
4.Mechanical Systems Integration：Low failure design
5.New concept of energy saving and environment protection ,can be save water and electricity
6.Scraper /magnetic rod combination machine：Suitable for different weight fabric printing
7.Printing stable and flexible：Imported stainless steel ball screw.Move the machine without mechanical clearance
8.The dryer with high fabric entry to save your workspace.
9.The unique printing system, glue, washing, printing rollers, you can expand more additional system.
10Correction adopt double correction device,stainless steel rollers. Infrared probe to ensure the conduction band running smoothly.
Printing width：1800-4000（mm)
Colors：4-24
Repeat：640-726-819-914-1018-1200
Speed：4-100m/min
Printing type：magnetic/ Scraper
Printing Accuracy：±0.05mm
Driving：Independent servo
Digital main screen：optical fiber servo main line control system(Chinese-English display)
Machine hand-type：left/right(according to the driving side based on fabric running)
Printing adjusting：Vertical360°/Horizontal±20/Diagonal±10
Dryer type：standard dryers/loosen type dryers/Entry in high-width
Heating source：thermal oil160°/ natural gas180°/steam130°
Air pressure:0.6-0.8MPa：
Water pressure:0.3MPa
Power Parameter：380VAC（±5%）50HZ 3PHASES
Grounding type:TN-S
Illumination：220V
Protective typeIP54
Total power≈105-165 KW
