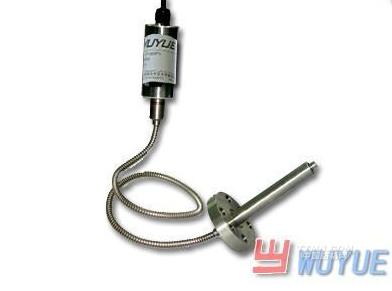

PT139 melt pressure sensor
發布時間：2013-08-05
Feature and usage:
Adopted the physical feature of imported improved sensor and probes, it has higher accuracy on viscous and low pressure condition. All parameters has reached the international standard, so this product can replace other oversea brands (United States DYNISCO, and Italy GEFRAN, and Germany and the United Kingdom, and Japan RKC).
Technical parameter:
Range series：0～0.1MPa～200MPa
total accuracy：0.2%FS.0.5%FS.1%FS
output signal：1mV/V.1.5mV/V.2mV/V，3.33mV/V，PT124B-123F，0～20mA,4～20mA,0～5V，1～5V，0～10V
voltage supply：10VDC 12～36VDC
Inner check：80%FS±1%
temperature the sense diaphragm can resist：max 550℃
covering temperature：0～80℃
covering material：316L
signal conduct line：6core gilding plug-in
machining and design of Flan can customized.
