最新恒張力拉鏈送帶機、恒張力送帶機、拉鏈燙平機送帶機、送帶機
發布時間：2017-05-21

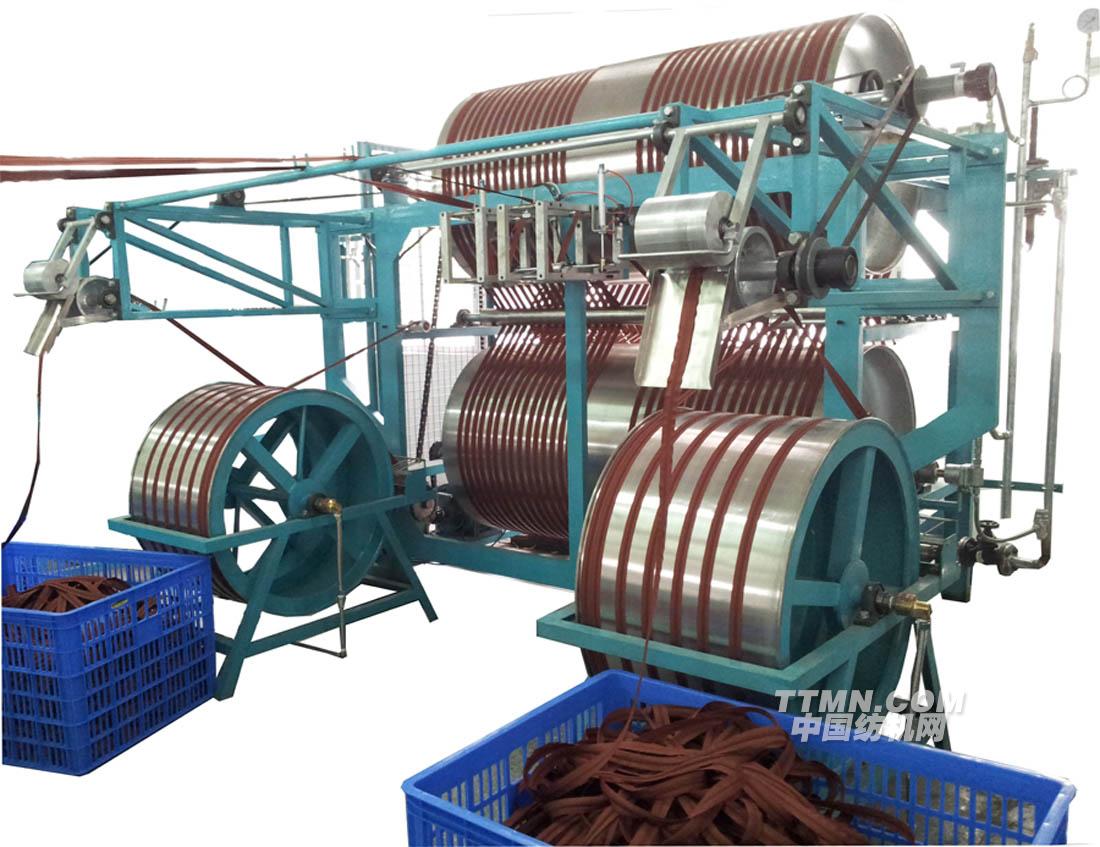

恒速恒張力送帶機
The dyed zipper conveying machine (constant speed and constant tension conveying)
恒速恒張力拉鏈送帶機是專門為生產高品質拉鏈產品最新研發的新設備，主要與拉鏈燙帶機配套使用。由常規依靠燙平機自行拉拽進料的被動方式升級為按張力大小自動調節進料的主動方式，使用效果顯著，對產品品質的提升起到至關重要的作用。該機型與技術已申請并通過國家專利認證，并下發了國家專利證書
This machine is specially designed for high quality zipper production,which in combination with ironing machine.It upgrading from ordinary passive feeding mode to active constant tension feeding mode,which plays a very important in the promotion of product quality.The technology have been applied and passed the national patent certification, and issued a national patent certificate.
技術特點 Features
1. 恒張力控制器張力值可任意調整，能使不同規格拉鏈配以最佳張力，達到最佳燙帶效果。電器部分采用優質配件制造，精密先進，品質穩定。裝卸方式采用氣缸自動提升部件，方便快捷省力。
The tension value of the constant tension controller can be adjusted to fie the different size of the zipper.Electrical prat of the use of high quality imported accessories manufacturing,superior performance,quality stability.The use of automatic loading and unloading system,convenient and quick.
2. 可以在不改變現有燙平機現狀的情況下，增加可調張力系統和送帶系統，并將控制系統集成到送帶機操作面板，使兩種設備完美配合，減小設備操作難度，提高工作效率。
It is possible to increase the adjustable tension system and the belt feeding system without changing the existing state of the ironing machine,the control system is integrated in the zipper conveying machine operation panel,reduce equipment operation difficulty,improve work efficiency.
3. 配備無料自動停機系統，每人可操作2-3臺，效率極高。
The dyed zipper conveying machine installed when the zipper shortage,can automatically stop running,each person can operate 2-3machines,and very efficient.
4. 常規情況下，大拉鏈管可以卷50Kg拉鏈，染色之后，普通拉鏈燙平機整燙后的拉鏈或布帶將被拉長（經過測試結果為：同一個拉鏈管的拉鏈取20段1000mm長的未整燙拉鏈，整燙之后被拉長10-45mm，20段樣品長度在1010-1045之間，拉長比例是1-4.5%）。使用拉鏈送帶機整燙后的拉鏈，被拉長變形的比例會大幅度縮小（用之前同樣的測試方法，結果為：整燙之后被拉長10-15mm，拉長比例降低為1-1.5%）。
1.Under normal circumstances, the big bobbin can be rolled 50Kg zipper,after dyeing,zipper ironing machine processing zipper or zipper tape will be stretched(after test results:with a bobbin of zipper take 20segment 1000mm long zipper not ironing,ironing pulled after long 10-45mm,20 segment length of the sample between 1010-1045mm,stretch ratio is 1tp 4.5%），Using this device ironing over zippers, are elongated deformation ratio will significantly reduce（Prior to using the same test methods, the result is: after being stretched ironing 10-15mm, are elongated to reduce the proportion of 1-1.5%）.
