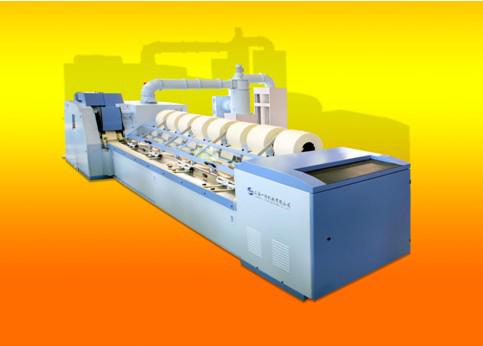

CJ66型棉精梳機Model CJ66 Cotton Combing Machine Introduction,如圖:

產品用途:
Application:
本機用于棉精梳工藝,將小卷制成精梳棉條。經精梳后棉條纖維中的短絨、棉結、雜質與纖維疵點得到進一步的清除,提高纖維的伸直平行度以及外觀光澤度,從而提高成紗品質。
It is designed for cotton combing, making combed cotton yarns from small coils. After combing, the flock powder, neps, impurities and fiber flaws are further eliminated. It improves the yarn extending parallelism and surface glossiness of yarns and thus improves the finished yarn quality.
機器特點:
Machine Feature:
1、擁有自主知識產權,集自主創新和引進技術為一體,形成自己的自主知識產權,擁有有效的發明專利四項,實用新型專利六項。
1. With independent intellectual property rights, integrated with independent innovation and imported technology, 4 patents of invention and 6 patents of utility model are applied successfully for this machine.
2、鉗板運動機構優化,減輕了鉗板組件重量,降低了高速往復運動慣性力與慣性力矩。
2. The nipper
3、新型的牽伸結構,采用新型三上三下加壓力棒的牽伸結構,能最大程度地滿足各種牽伸要求。同步帶傳動結構簡單、調節方便。
3. The new type of drafting structure is adopted with the new three-up, three-down pressure rollers, which can meet the various drafting requirements as much as possible. The structure of synchronous belt transmission is simple and can be regulated easily.
主要技術參數:
Main parameters:
1.眼數與眼距: 8眼×470毫米
1. Number of holes and distance between holes: 8 holes×470mm
2.喂入小卷: φ600×300毫米
2. Input small coil: φ600×300mm
3. 適紡原棉長度: 28~38毫米
3. Suitable weaving raw cotton length: 28-38mm
4.機械速度: 最大450鉗次/分
4. Mechanical speed: max 450 Nips per Minute
5
6.錫林直徑: φ127毫米
6. Diameter of cylinder: φ127mm
7. 毛刷直徑: φ115毫米
7. Diameter of comb: φ115mm
8. 分離羅拉直徑: φ25毫米
8. Diameter of detaching roller: φ25mm
9.車尾牽伸形式: 三上三下附壓力棒曲線牽伸
同步帶傳動,氣動加壓。
9. Draft type of machine end:
three-up, three-down attached pressure bar curve drafting
Synchronous belt transmission, pneumatic pressuring
10.羅拉直徑: φ35(前)×φ27(中)×φ27(后) 毫米
10. Diameter of roller: φ35(front)×φ27(middle)×φ27(back) mm
11.皮輥直徑: φ39毫米
11. Belt roller diameter: φ39mm
12.圈條形式: 單筒單條大卷成形。
12. Coiler type: single bobbin single yarn big coil coiling
13. 驅動電動機: 主電機5.5千瓦
牽伸傳動電機1.5千瓦
毛刷電機1.5千瓦
13. Driven motor: main motor 4KW,
15. 占地面積 (長×寬): 約7.3米×1.9米
15. Flooring space ( L×W): about 7.3 meter×1.9meter

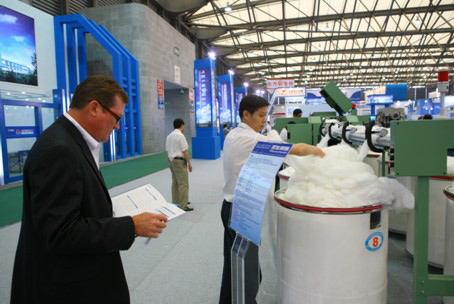

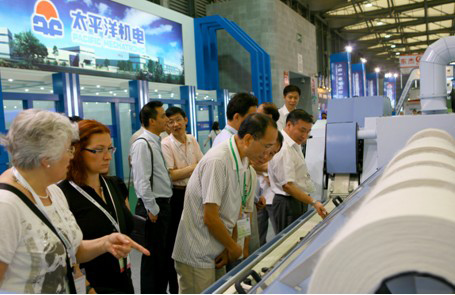

展臺照片:
