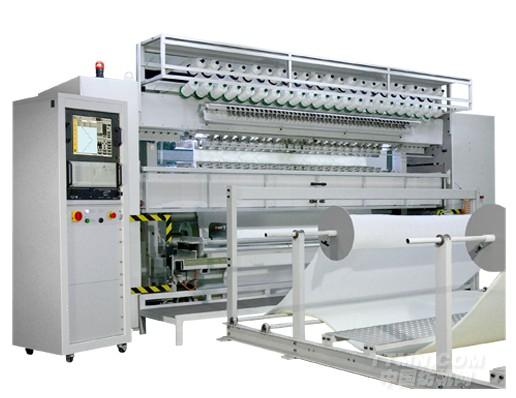

Richpeace Multi head Rotary hook Quilting machine

Model: RPQ-L2000P-2R-（26+25）T-105

選項裝置:

1、機頭離合系統

2、無鎖芯旋梭系統

上述兩項只供歐洲區域銷售

主要功能與特點:

1. 世界獨有的大旋梭雙排多針絎縫機, 工作速度高達2000轉/分，工作效率極高。

2. 先進的面線斷線檢測功能,停車自動提針.

3. 可絎縫跨步獨立圖案（涵蓋180o，360o圖案), 花樣更精確，無丟針、不起環。

4. 針排距可從4英寸至11英寸任意調節, 實現特大花樣的絎縫, 實屬業內首家.

5. 可絎縫面料厚度達50mm.

6. 觸摸屏操作系統, 圖形化界面, 清晰直觀;所有功能可視于同一界面.

7. 自動供油系統，全方位潤滑機頭，延長機器使用壽命。

8. 采用富怡新一代絎縫打版軟件, CAD繪圖系統,制版方便快捷.

9. 機器設置簡易、方便，操作安全性高。

10. 采用世界先進的絎縫機頭, 下針排X 向可移動52.2mm, 配合上針排完成各種花型的絎縫, 無需改變針位, 從而大大提高生產效率.

應用：床墊，床墊套，床罩，被子，睡袋，沙發床，服裝，手袋等。

Optional devices:

1. Machine Heads Clutch System.

2. Rotating Hook system without bobbin.

Main features and function

11. The unique 2 row Multi head lock stitch quilting Machine all around the world, with speed up to 2000RPM.

12. Advanced upper thread breakage detection function. Auto needle-lifting when machine stop.

13. Quilting tack and jump patterns（cover 180o，360opatterns） in high quality without loss of production.

14. It is the first one in this industry that distance between the two needle rows is easily adjustable from 105 up to 380mm(4”-11”), enable extra big patterns be quilted.

15. The machine is well qualified to quilt material as thick as 50mm.

16. Touch screen computer control system with graphic interface, allowing simultaneous vision and access to all machine functions.

17. Automatic lubrication of machine heads, especially for needles and hooks.

18. Richpeace new generation quilting software, easy operation of CAD drawing system.

19. Easy setting of the machine with perfectly security.

20. Worldwide advanced quilting machine head. The lower needle row can be moved sideways at will up to 52.2mm, working with the higher needle row, allowing a multitude of patterns without change of needle position.

Application：

The machine is widely used for quilting mattress, mattress protector, bedspread, quilts, sleeping bed, sofa-bed, winter clothes, hand bags, etc.

Main parts of the catalog:

1. 用途

2. 功能及特點

3. 一張機器照片放在右邊。做個醒目的標語：High speed：2000RPM

4. 對比圖片：①展示改變花樣時無需換針，節省大量時間；②針排距不止6英寸，最大可以是11英寸。③絎縫跨步獨立圖案更精確，鎖針無丟針，更美觀。

5. 放大旋梭及機頭照片。強調Lock-stitch。可以加上一句話：The only machine with Lock stitch at speed up to 2000RPM.

6. 放一張機器繡品照片，我發給楊的那張就可以。
